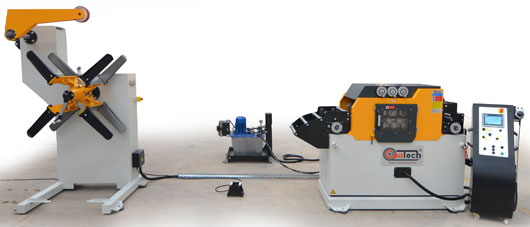

Straightener-Feeder

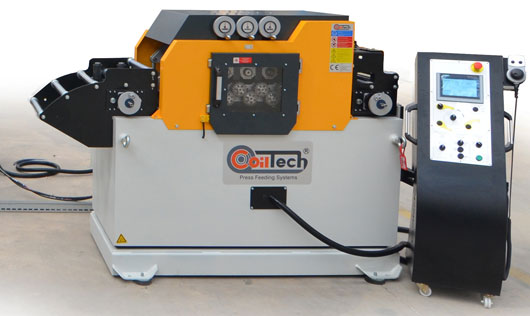

Compact type straightener servo roll feeder machines manufactured for space saving at manufacturing plants. Machines manufactured between 100mm to 1500mm width capacity. Number of straightener rolls and diameters choosen according to sheet width and thickness.
100-600 mm coil width capacity
Standard Features
- Keyless gear
- Keyless, low backlash gear box system
(Do not applied 5+2 models) - Seperately adjustable straightener rolls with indicator
- Inlet - outlet guides
- Feeding rolls piloting system
- Manual machine height adjustment
- 7 inch colored touch panel
- Die memory system
- Various size feeding
- 2 different press control
- 2 or 4 pinch rolls
(Do not applied 5+2 models)
Optional Features
- 5/7/9/11 rolled straightener group
- Pneumatic or hydraulic crocodile rolls opening
- Straightener rolls hydraulic piloting
- External hydraulic unit with cooler system
- Hand wheel for sheet position adjusment
- Automatic height adjustment
- Hydraulic or pneumatic inlet bending
- Alternative screen dimensions
- Wireless control panel
- External output selections
- Support rolled straightener group
- External encoder system
- Alternative electronic brands
