SM1 SERIES

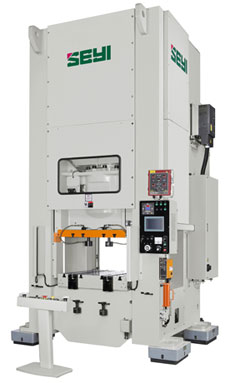

SM1 SERIES SM1-300~500 TONS

APPLICATION

Applicable for small type progressive die or single processing more than 2mm thickness of material, in blanking, piercing bending, forming component with heavy load.

FEATURES

• Link motion with a reduced touch speed and cause less vibration and noise.
• Increased productivity by up to 30% compared to conventional presses.
• An 8-point square slide guide that with limited gib clearance.
• Excellent rigid construction is built for heavy loading, drawing and blanking.

1. Standard Attachments

• Main Motor with Inverter
• Flywheel Brake and Main Motor FWD./REV. Controller
• Combination Wet Clutch / Brake
• Electrical Die Height Adjusting Device
• Electronic Touch Screen Panel
• Programmable Cam Switches and 8 Channels Spare Cams
• Hydraulic Overload Protection System
• Automatic Re-circulation System
• Die-stick Release Device
• Large Lockable Emergency Stop Button
• Product Counter
• Batch counter
• Misfeed Socket (2B)
• Pneumatic Ejector (1 set)
• Air Outlet (1 set)
• Wall Mount Control console
• Die Light Device
• Portable Operation Stand
• Safety Door
• Safety Bar
• Safety Fance
• Ladder
• Maintance Tool

2. Optional Attachments

• Quick Die Change Device
• Automatic System Device
• Poto electric Safety Device
• Electric Tonnage Monitor
• Anti Vibration Mounts
